LEONI 2x2.5RM 2XYRY-fl, IEC 60502-1 500미터 > Leoni

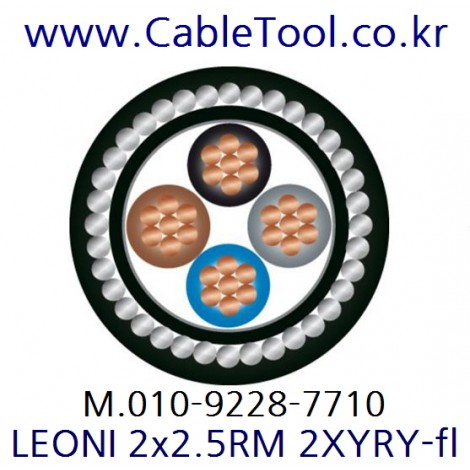

CONSTRUCTION

1) Component 1

2 x 2.5 RM (RM = circular stranded)

2) Conductor

2.5 ㎟ (Plain annealed copper wire , according to IEC 60228)

3) Insulation

XLPE (Cross-linked polyethylene)

4) Color(s)

1) BLACK, 2) WHITE (option)

5) Laying up

cores twisted in layers

6) Wrapping

at least 1 layer of plastic tap

7) Inner sheath

polyvinyl chloride PVC, black

8) Armour

galvanised round steel wires

9) Outer sheath

polyvinyl chloride PVC, Grey (option)

10) Cable marking

LEONI KERPEN ELECTRIC CABLE SIZE 0.6/1 kV IEC 60502-1 YEAR PRODUCTION LOT CODE LENGTH MARKING

Technical data:

Product Description: IEC 60502-1, 0.6/1KV Power and Control Cable, 2XYRY-fl

1) Flame propagation

a) Test on single cable : IEC 60332-1-2

b) Test on bunched cables : IEC 60332-3-24 (Cat. C)

2) Limiting Oxygen Index (LOI) : ASTM D 2863 (min. 30 %)

3) Flammability temperature (FT) : ISO 4589-3 ann. A (min. +250 ° C)

4) Amount of halogen acid gas : IEC 60754-1 (max. 17 %)

6) Oil resistance : ICEA S-73-532

7) Sunlight resistance : UL 1581 section 1200

8) Temperature range

a) -30°C up to +90°C (during operation)

b) -5°C up to +50°C (during installation)

c) max. +250°C (under short circuit)

9) Minimum bending radius: 10 x cable diameter
